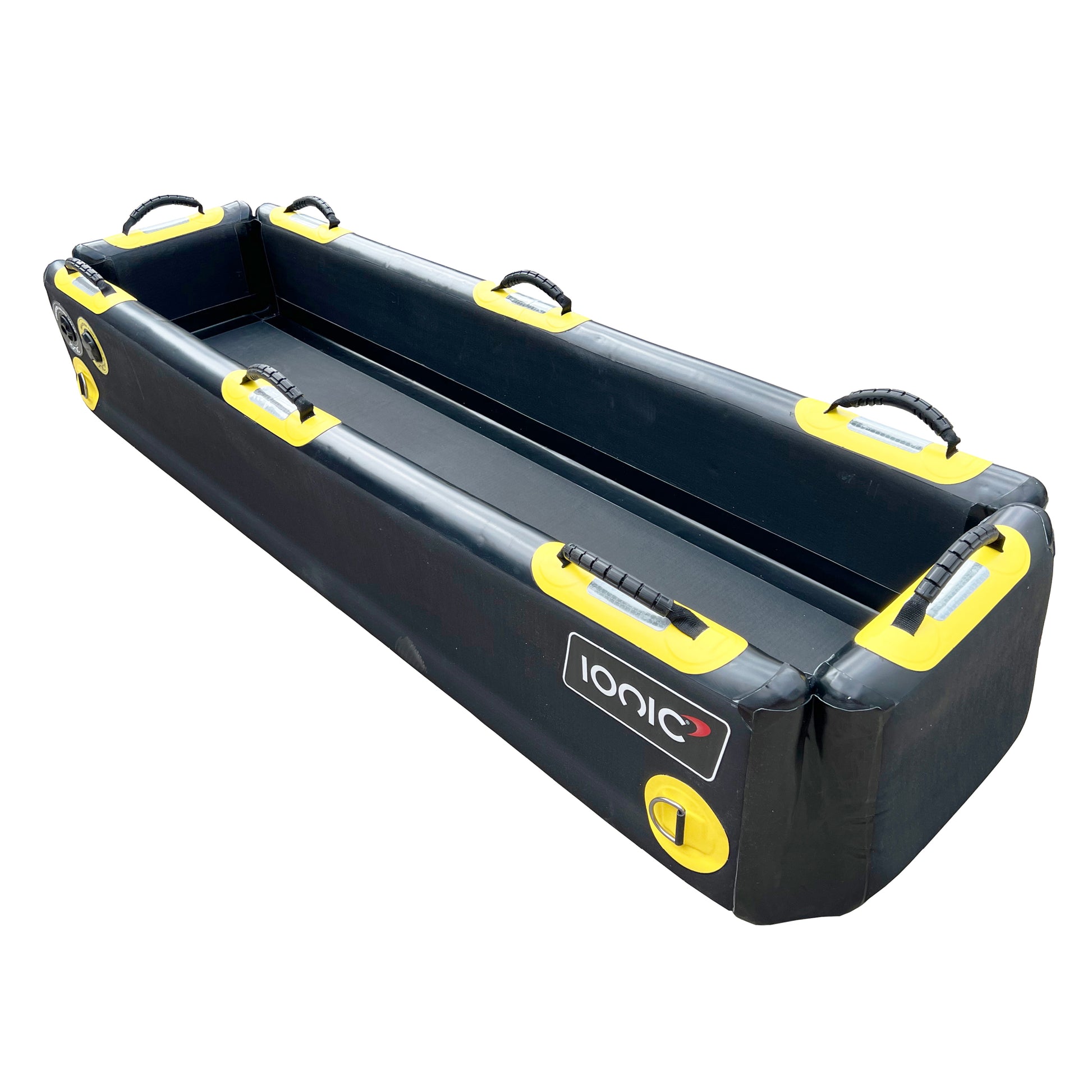

IONIC Transfer Sled

SKU: SAF38083

The IONIC Transfer sled has been designed and developed to meet the needs in urban flooding for casualty transfers. The transfer sled can access buildings or a confined space situation, where its not possible to use a boat or a raft for rescue/evacuation. and be capable of of evacuating injured casualties from flooded areas.

This unique design sled is constructed using only one piece of ORCA 4” (100mm) Drop
Stitch Fabric. This creates an extremely robust construction, as well as providing maximum buoyancy and stability on the water.

The Transfer Sled can be inflated rapidly using high pressure air cylinders connected to the inflation valves using the Compact Inflation Kit (SAF38038)or by using a conventional hand/foot pump. The design allows for both the deck, side and end walls to inflate to 6psi through a single inflation point which provides unrivalled stability in the water.

Features
• Marine grade stainless steel D-Ring x 4
• Carrying handles with reflective panels x 8
• Single point inflation
• Pressure Relief Valve
• Supplied with hand pump
• Suitable for rapid inflation using a compressed air cylinder
• Repair kit
• Stowage Bag

Load Capacity
• Maximum number of persons 1
• Maximum payload 160kg

Dimensions / Weight
• External Length 2.15m
• External Width 0.65m
• External Height 0.45m
• Internal Length 1.95m
• Internal Width 0.42m
• Internal Height 0.30m

Inflation
• Number of chambers 1
• Working pressure 6 psi

Towing/Tethering Points
• Front D-Ring Patches 2
• Back D-Ring Patches 2

Sponsons & Deck
• 150mm (6”) High pressure Deck
• 200mm (8”) diameter Hypalon Sponsons
• Sponsons consist of 2 air tight chambers

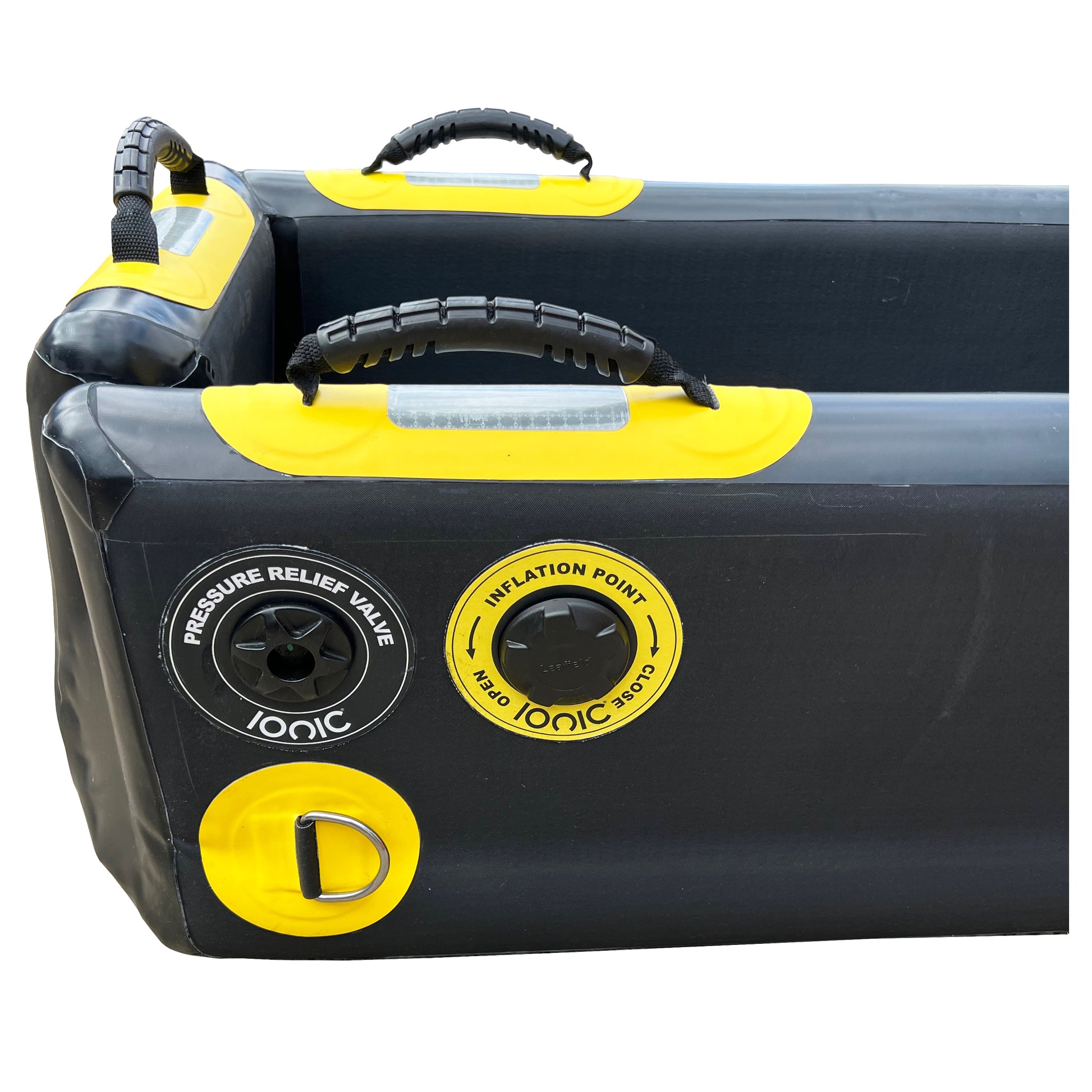

Valves
• Rapid inflation points on side wall of Sled
• PRV on side wall of Sled

Fabric
• ORCA 100mm (4”) Hypalon coated drop stitch

Packed Dimensions / Weight
• 50(l) x 40(w) x 40(h) cms
• Packed Weight 23kg

Download Spec Sheet
