Ionic Rescue

IONIC Rescue Track

IONIC Rescue Track

SKU: SAF38062 (2m), SAF38065 (3m), SAF38061 (5m)

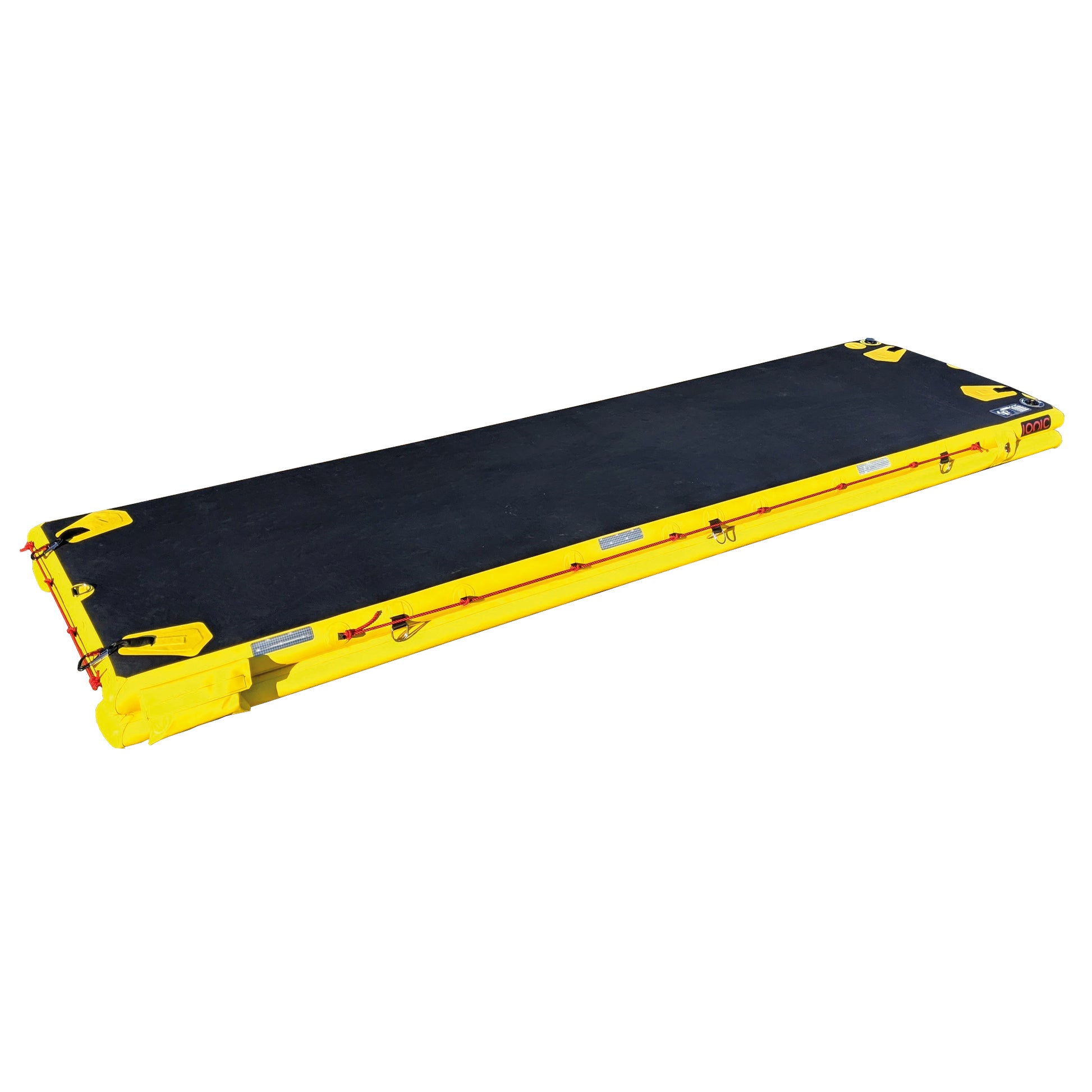

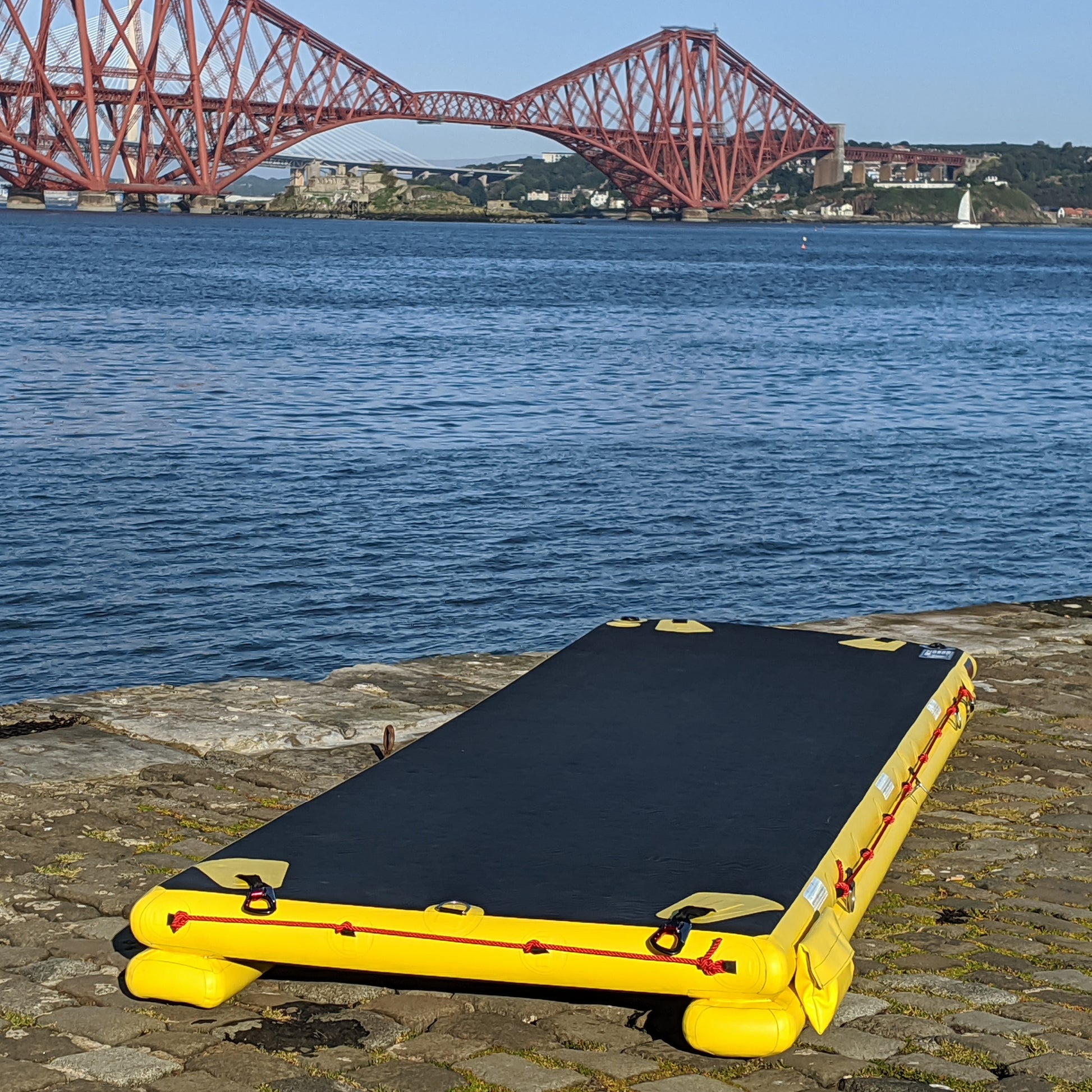

The IONIC Rescue Track has been developed to reach casualties on water, mud, ice and unstable terrain or rescues where casualty access is problematic without means of a safe platform to operate from. It can also be used for animal recue scenarios.

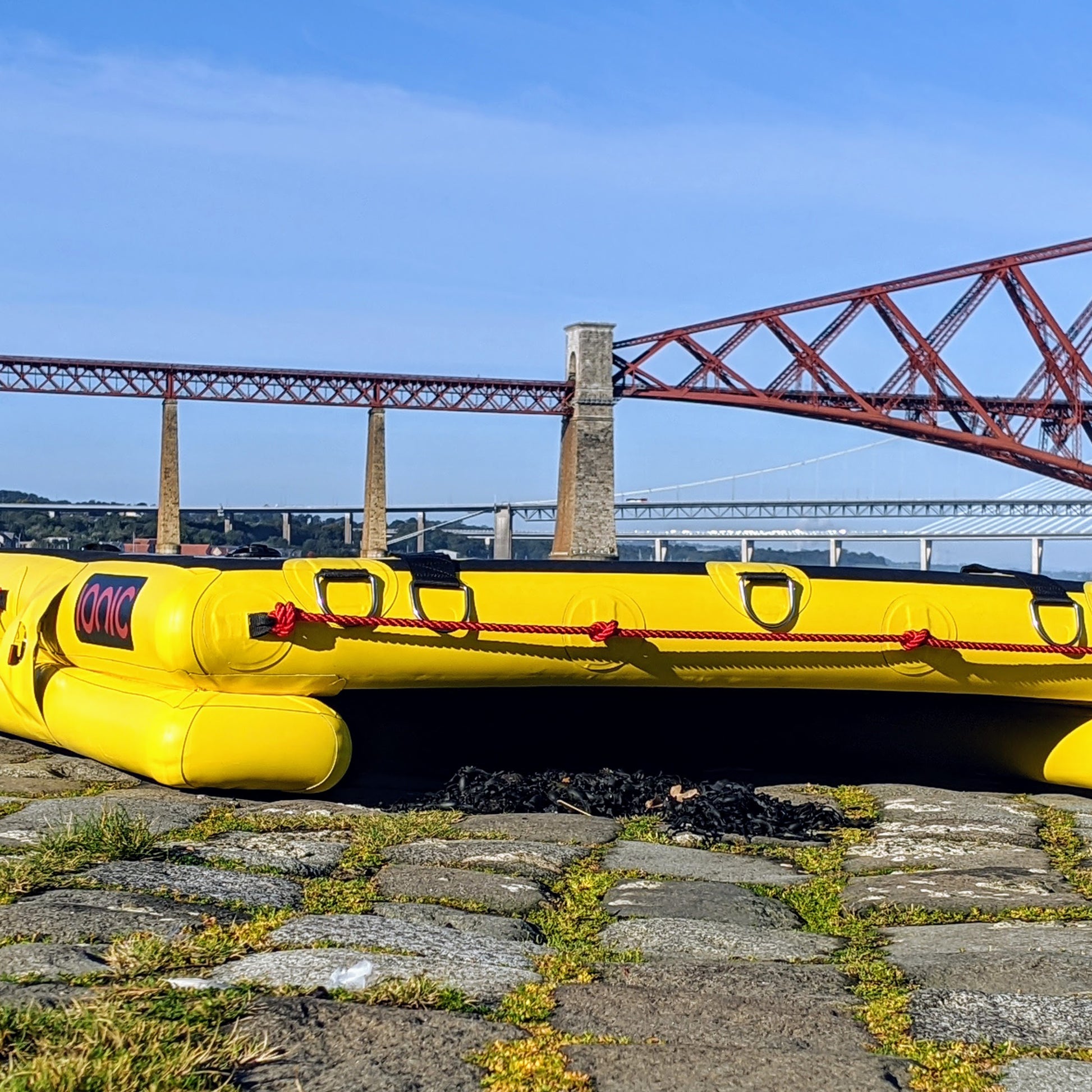

Designed and constructed in a catamaran shape, the Rescue Track has two Sponsons running the full length down the underside of the Track and this reduces friction and suction effect especially when being used on Mud.
All IONIC Rescue Tracks are manufactured in 150mm Orca Drop Thread for the Deck and 100mm Drop Thread for the Sponsons. When inflated to its maximum pressure of 6psi it provides excellent rigidity, while the Hypalon deck coating provides superior abrasion, durability and protection against UV degradation.
The Rescue Track is available in various sizes from 2m to 10m in length. For increased lengths the Rescue Path comes with D-Ring attachment points at each end to enable paths to be joined together or for “Piggy Backing” purposes where the casualty is at a further distance from safety.
The Rescue Path is rated for inflation using a compressed air cylinder fitted with the IONIC Compact Inflation Kit which is recommended for rapid inflation and quick deployment.

• Number of chambers x 3
• Inflatable high pressure Airdeck x 1
• Total airtight chambers x 3
• Track working pressure 6 psi

Towing Points
• Bow Towing D-Ring Patches 2

Sponsons & Deck
• 150mm (6”) High pressure Airdeck
• 100mm (4”) High pressure Sponsons

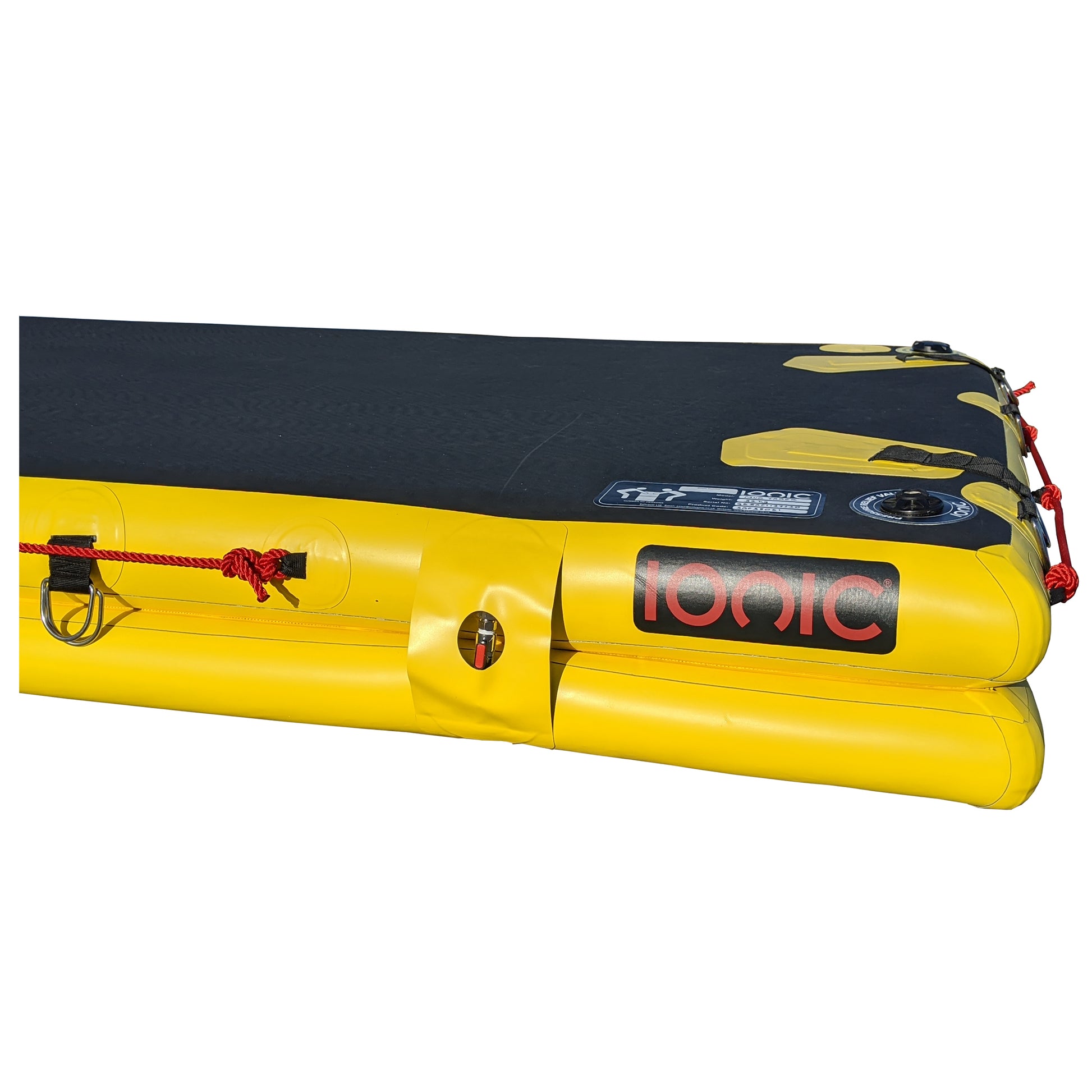

• Sponsons connected to the Airdeck via interconnecting valves

• Interconnecting valves connecting Air Deck and Sponsons can be turned to the closed     position isolating the Airdeck from the Sponsons
• Rapid inflation point on Airdeck

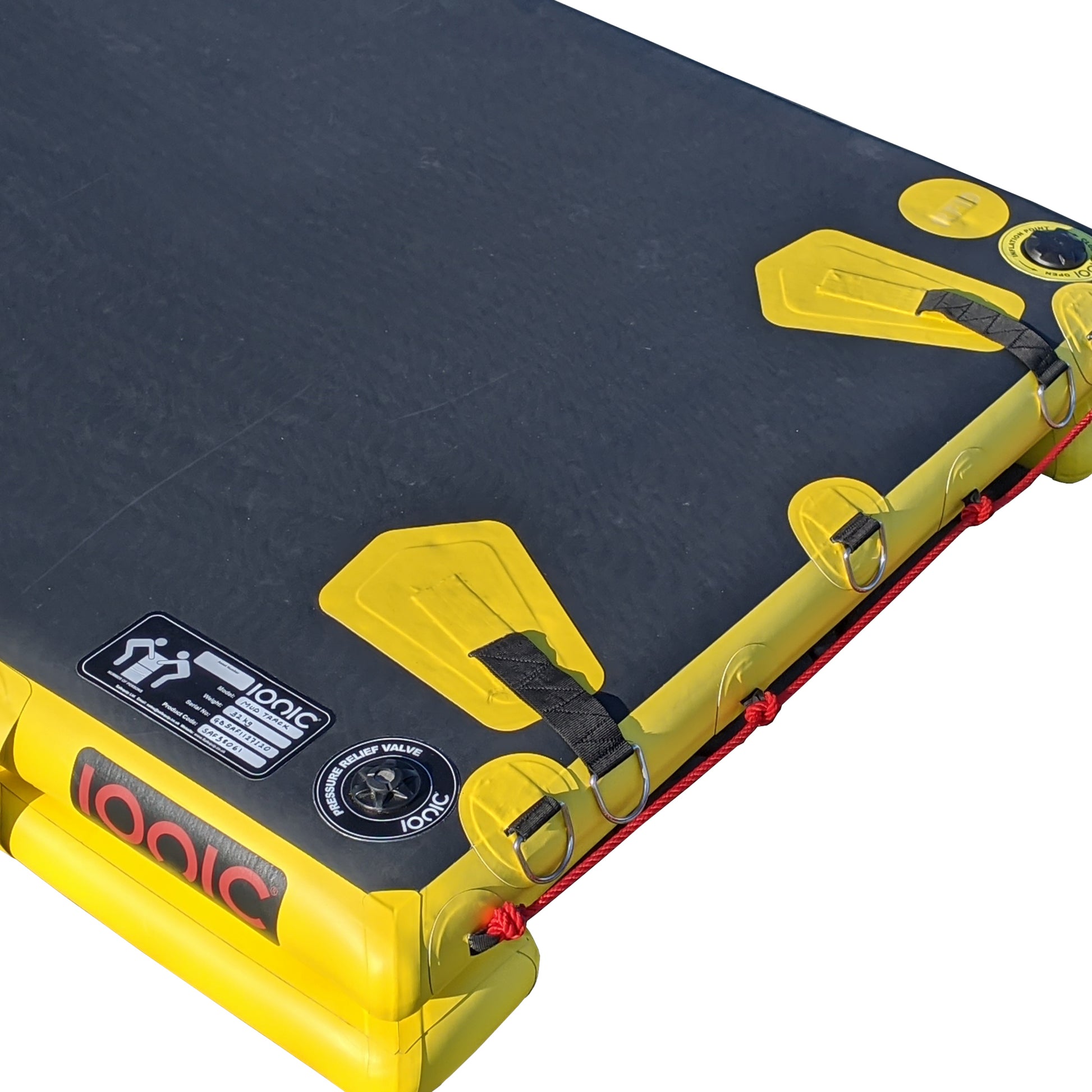

• PRV fitted to Airdeck

• Extremely durable for a long service life
• Hypalon coated non-slip surface
• Single point inflation ensures a quick and easy deployment.
• Rescue Tracks can be connected both side on side and length on length to create a
   bigger working platform
• Lifelines are fitted to both sides of the Track
• Towing points are fitted to the end of the Track
• Stowage pocket fitted on side of Track

Technical Data 2M 3M 5M 10M
Length (cm) 200 300 500 1000
Width (cm) 140 140 140 140
Height (cm) 25 25 25 25
Air Volume (ltr) 650 1000 1600 3000
Capacity (kg) 200 300 500 1000
Packed Dimensions (cm) 80 x 50 x 25 90 x 45 x 30 90 x 50 x 30 90 x 75 x 50
Packed Weight (kg) 12 16 25 50

Download Spec Sheet

Regular price £3,100.00 GBP
Regular price Sale price £3,100.00 GBP
