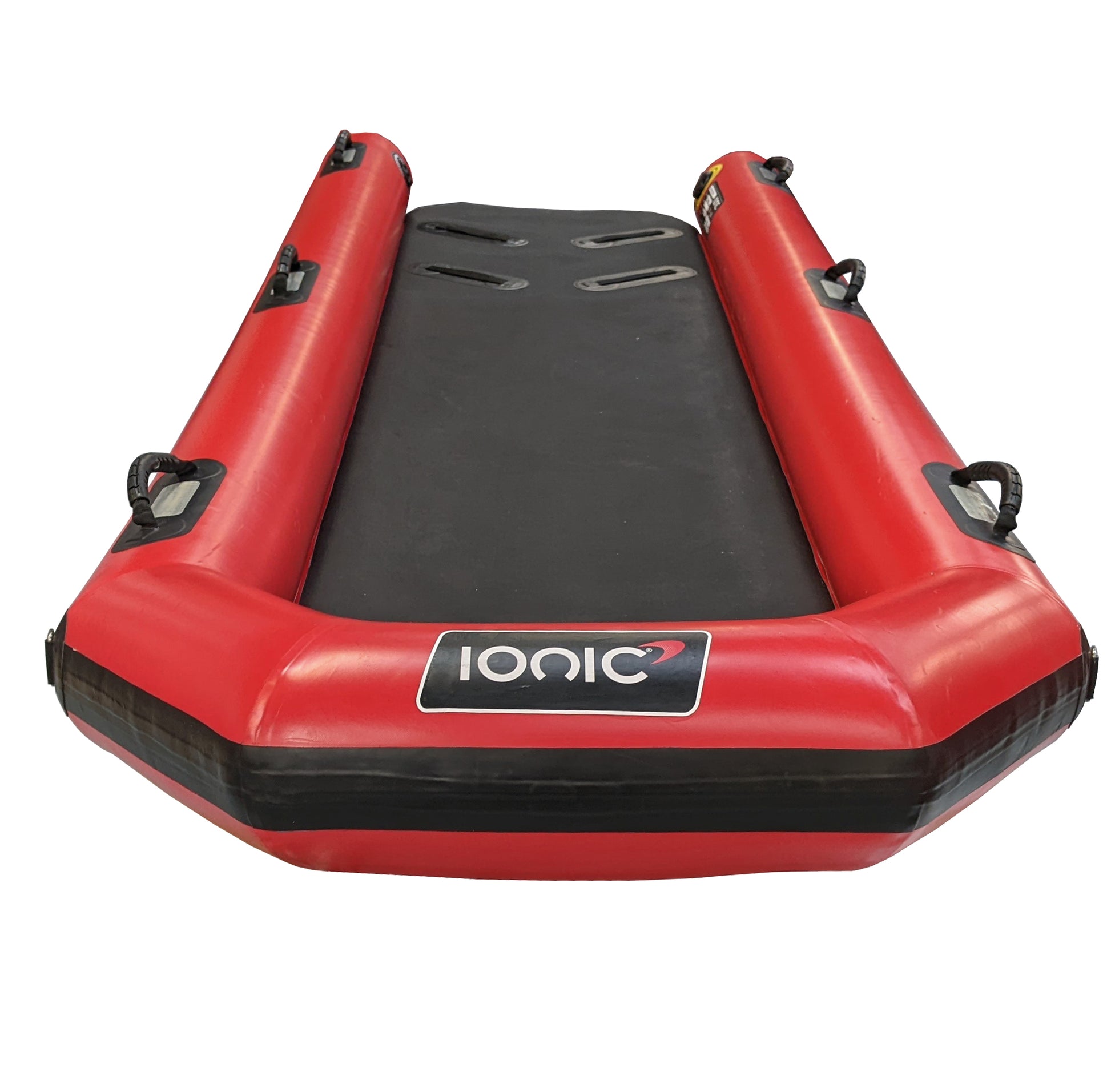

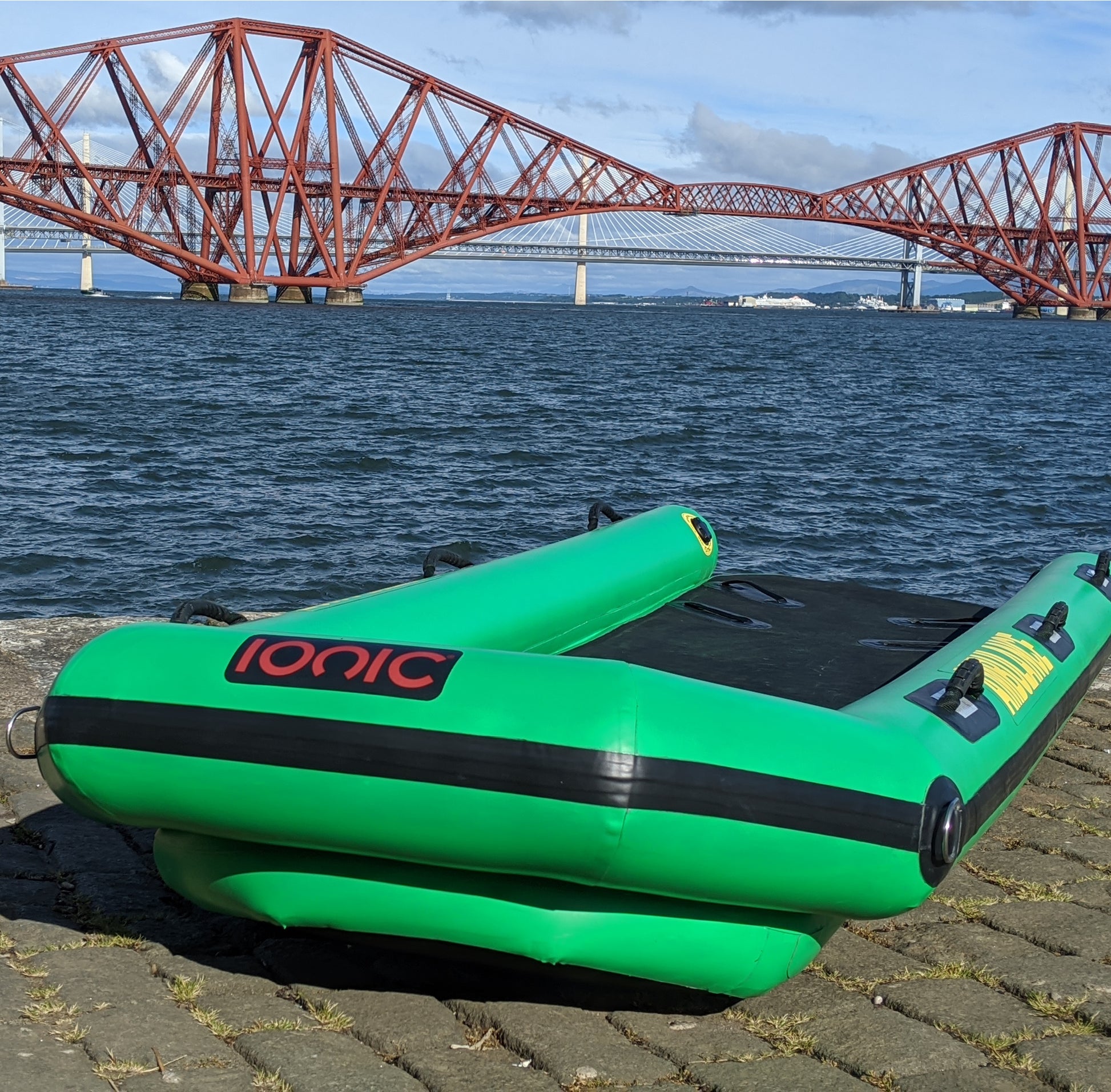

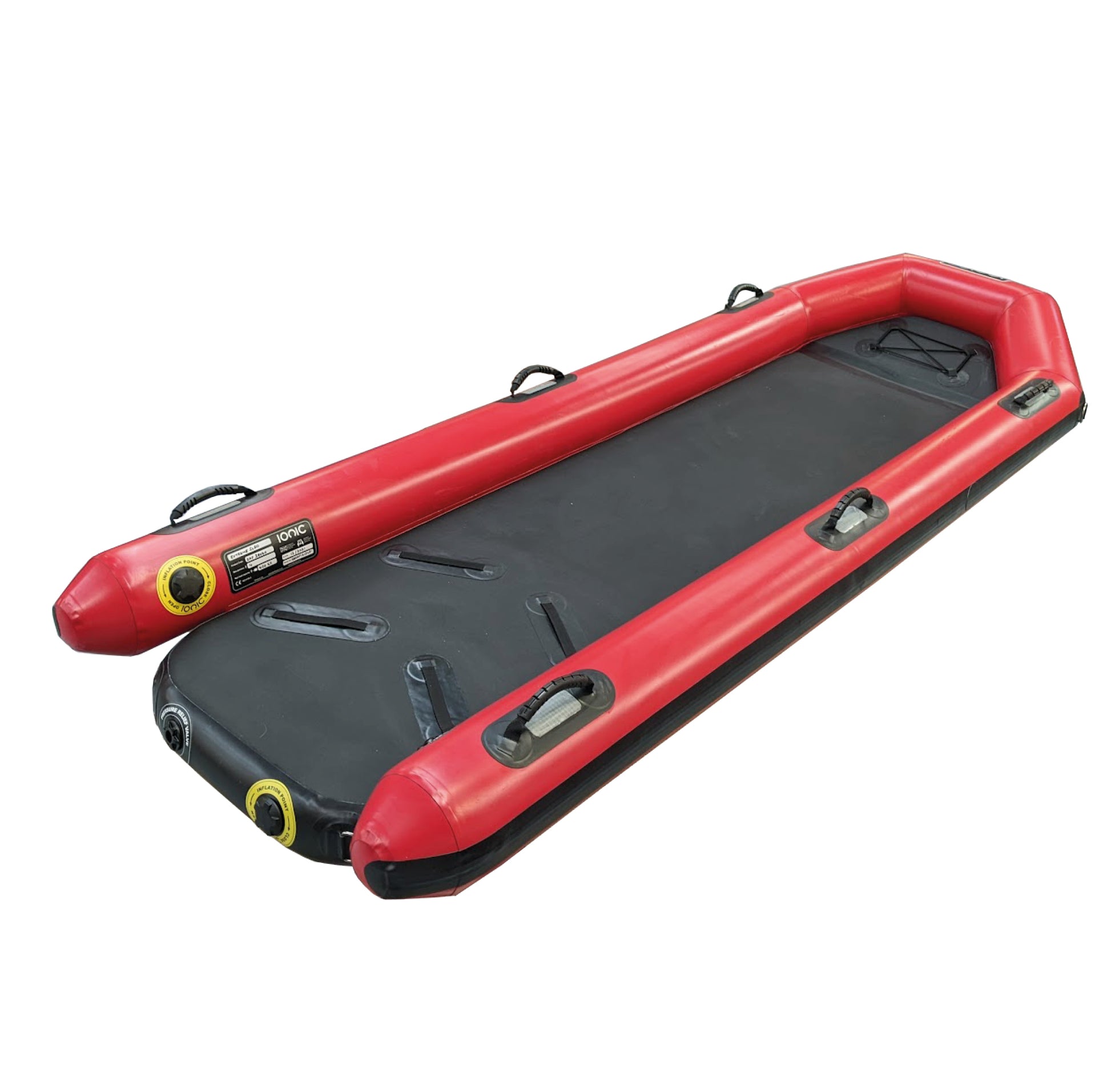

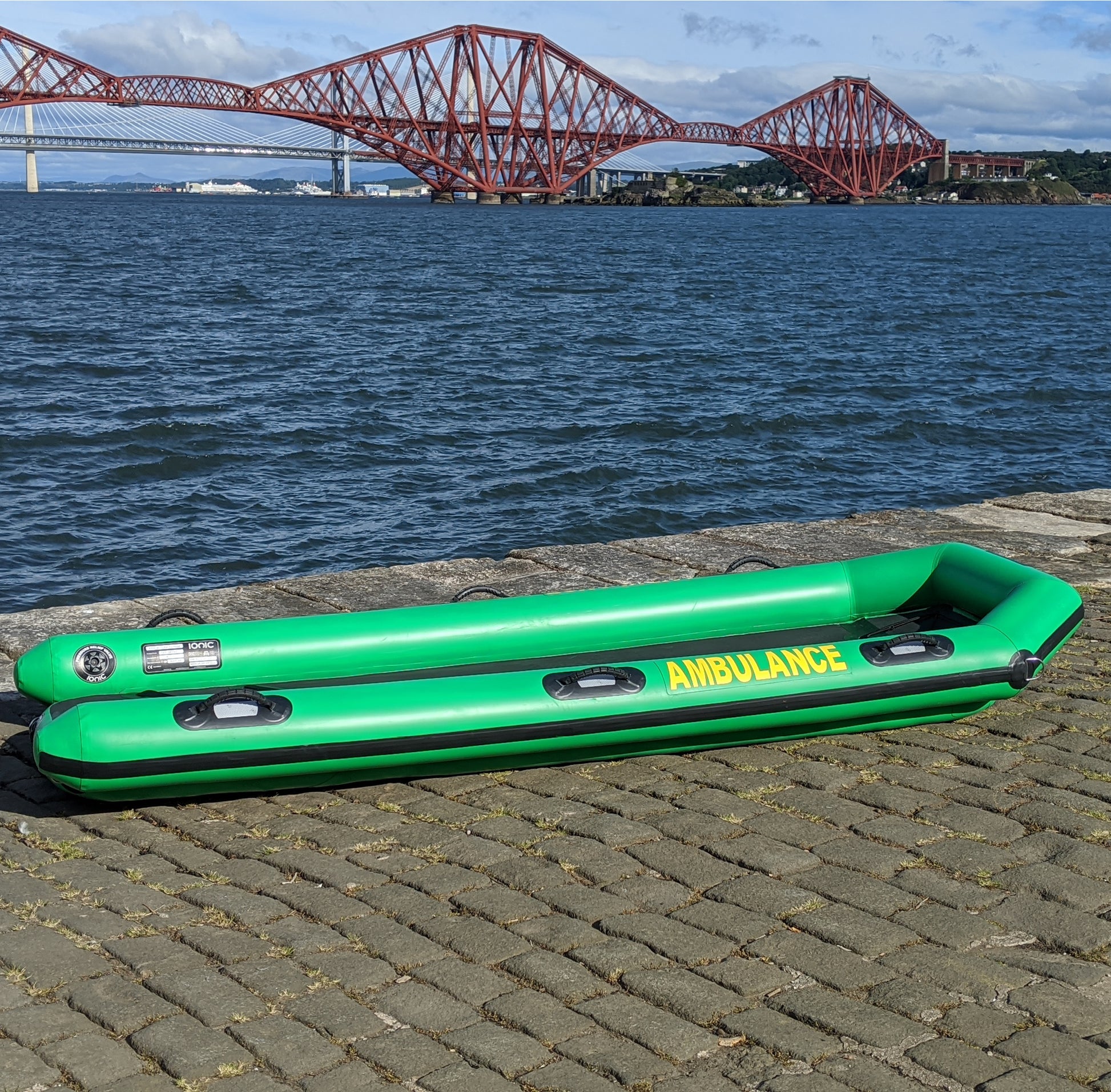

IONIC Extreme Sled

SAF38040

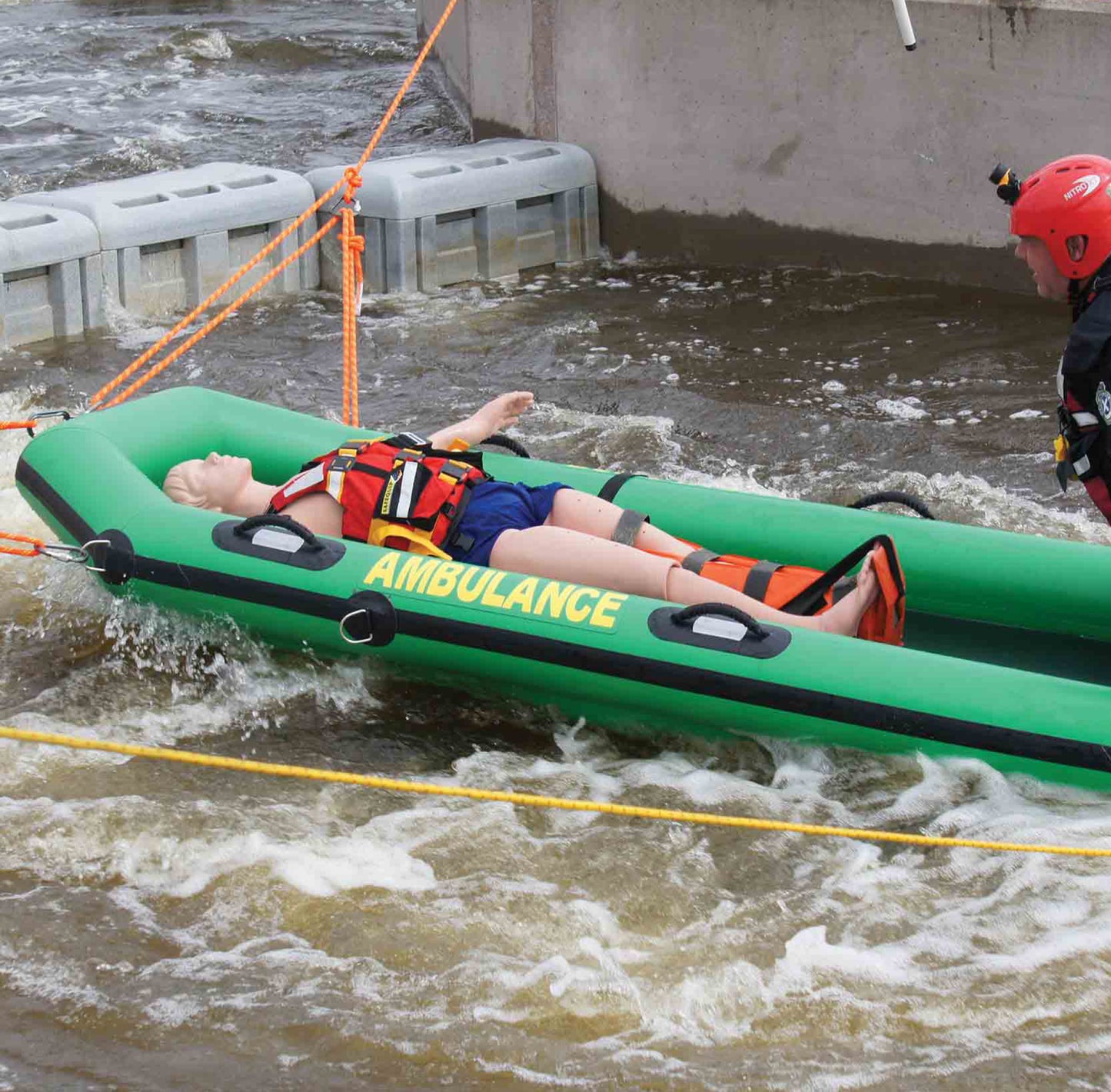

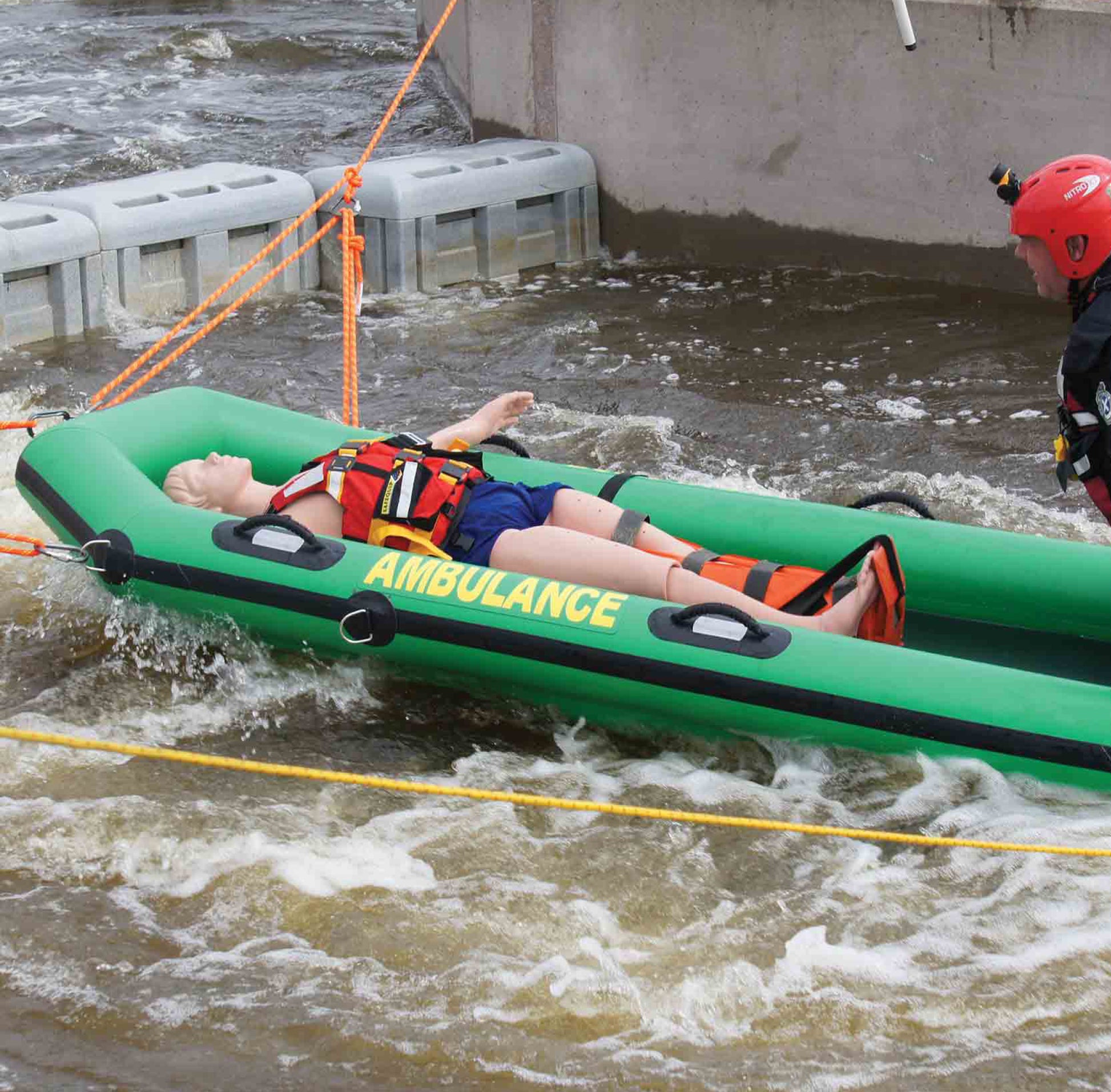

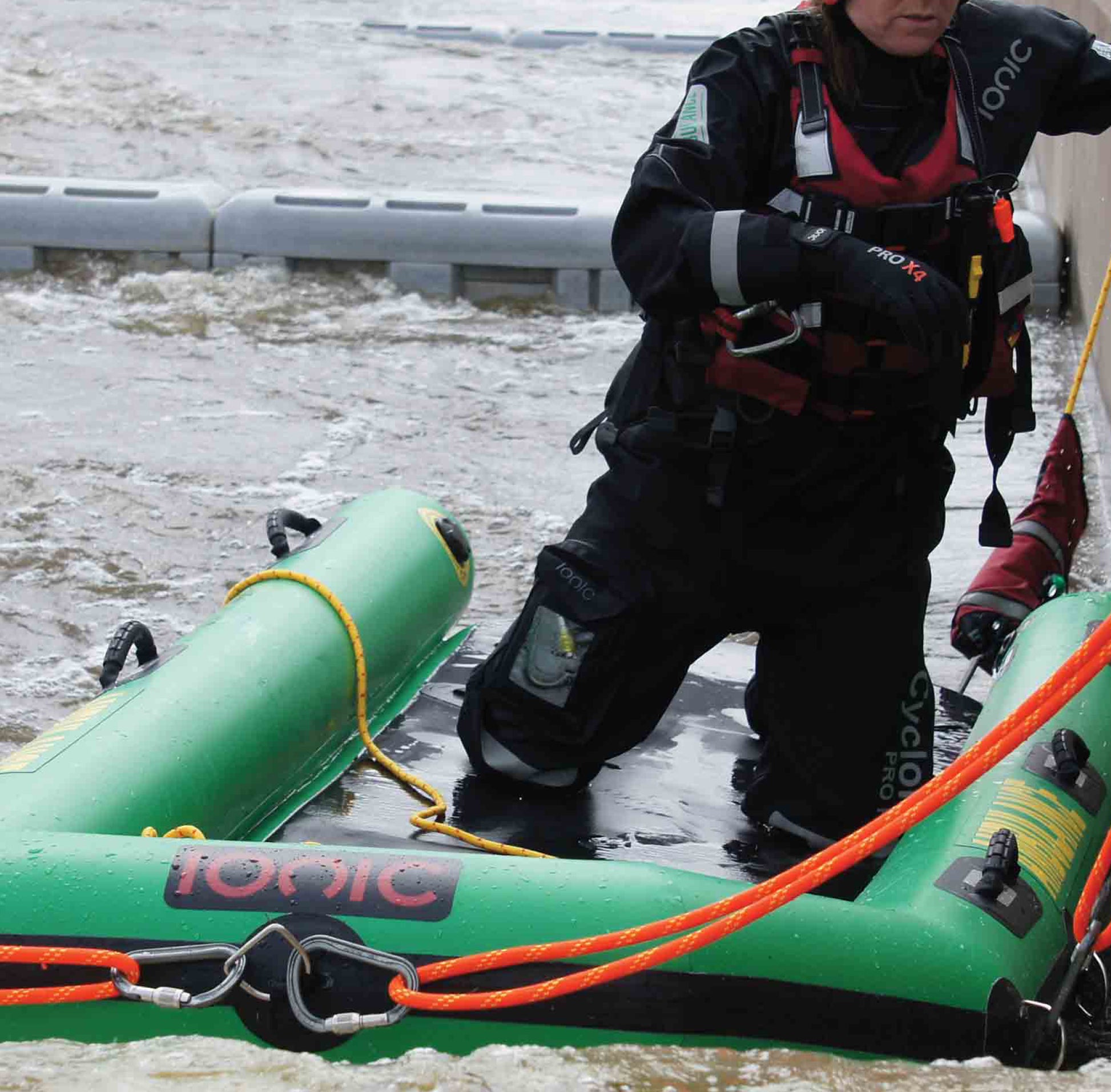

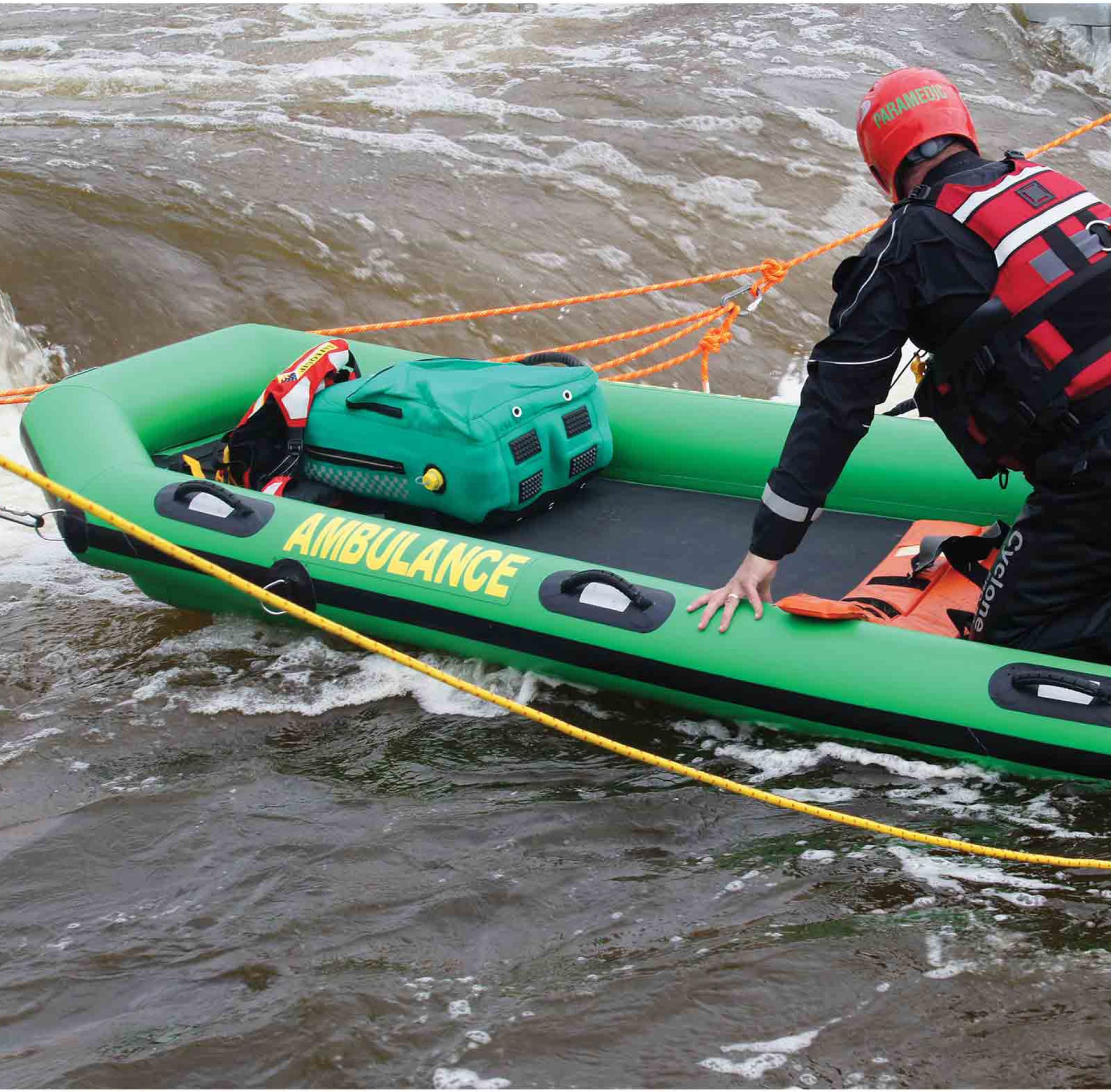

The IONIC Extreme Sled is the original sled that set the standard for rescue applications. At 3m in length it provides 400kg of useable buoyancy, but remains both compact and easy to deploy and manoeuvre. This versatile sled provides a stable working platform for various types of rescue applications in water, ice and mud/soft ground rescue. It is easy to paddle, or can be towed, and is fitted with 5 tethering points as standard together with 2 flip tabs located under the deck.

Manufactured in Orca® Hypalon the Extreme delivers unrivalled durability compared to PVC constructed models. It boasts an Orca® 6” Drop Thread Deck which inflates to 6psi providing a more stable platform to work from compared to alternative models with a 4” version. The deck is also over-layed with a double coated Hypalon skin providing a non-slip safe platform to work from. The Extreme Sled  is rated for inflation using a compressed air cylinder fitted with the IONIC Compact Inflation Kit which is recommended for rapid inflation and quick deployment.

Load Capacity
• Maximum number of persons 4
• Maximum payload 400KG

Craft Dimensions
• Overall Length 3.2M
• Overall Width 1.2M
• Inside Length 3.0M
• Inside Width 0.7M

Inflation
• Number of chambers in Sponsons 1
• Inflatable high pressure deck  1
• Total Airtight chambers 2
• Sponson working pressure 3 psi
• Deck working pressure 6 psi

Towing/Tethering Points
Bow D-Ring Patches 3
Stern D-Ring Patches 2

Sponsons & Deck
• 150mm (6”) High pressure deck
• 200mm (8") Hypalon® Sponsons
• Sponsons consist of 1 air tight chambers

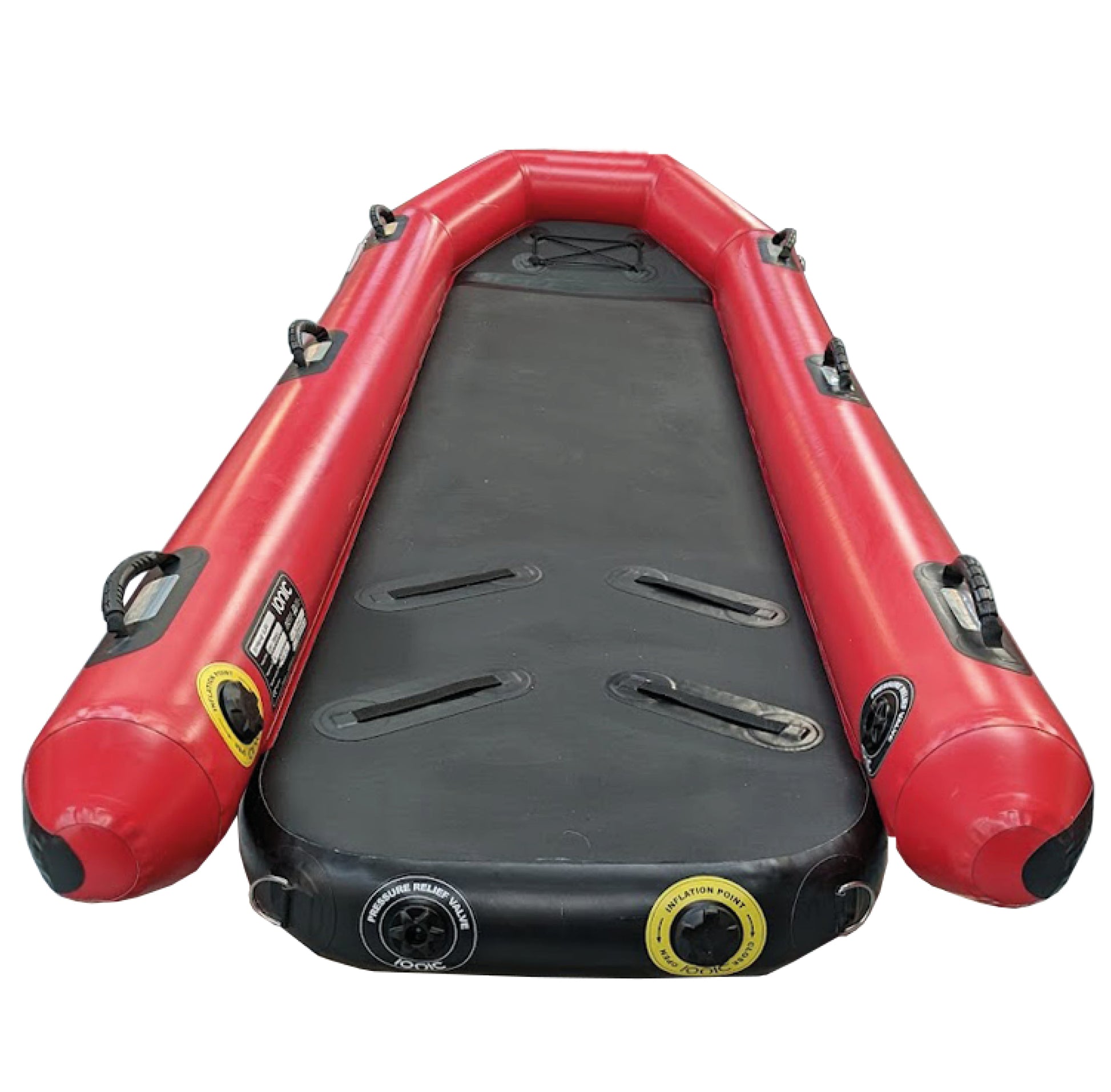

Valves
• Rapid inflation points on Sponsons & Deck
• PRV’s fitted to Sponsons & Deck

Fabric
• Sponsons - ORCA Hypalon®
• Deck - ORCA Hypalon® double skin drop thread

Packed Dimensions / Weight
• 80(l) x 70(w) x 35(h) cms
• Packed weight 23kg
