IONIC Explorer Sled

SKU: SAF38080

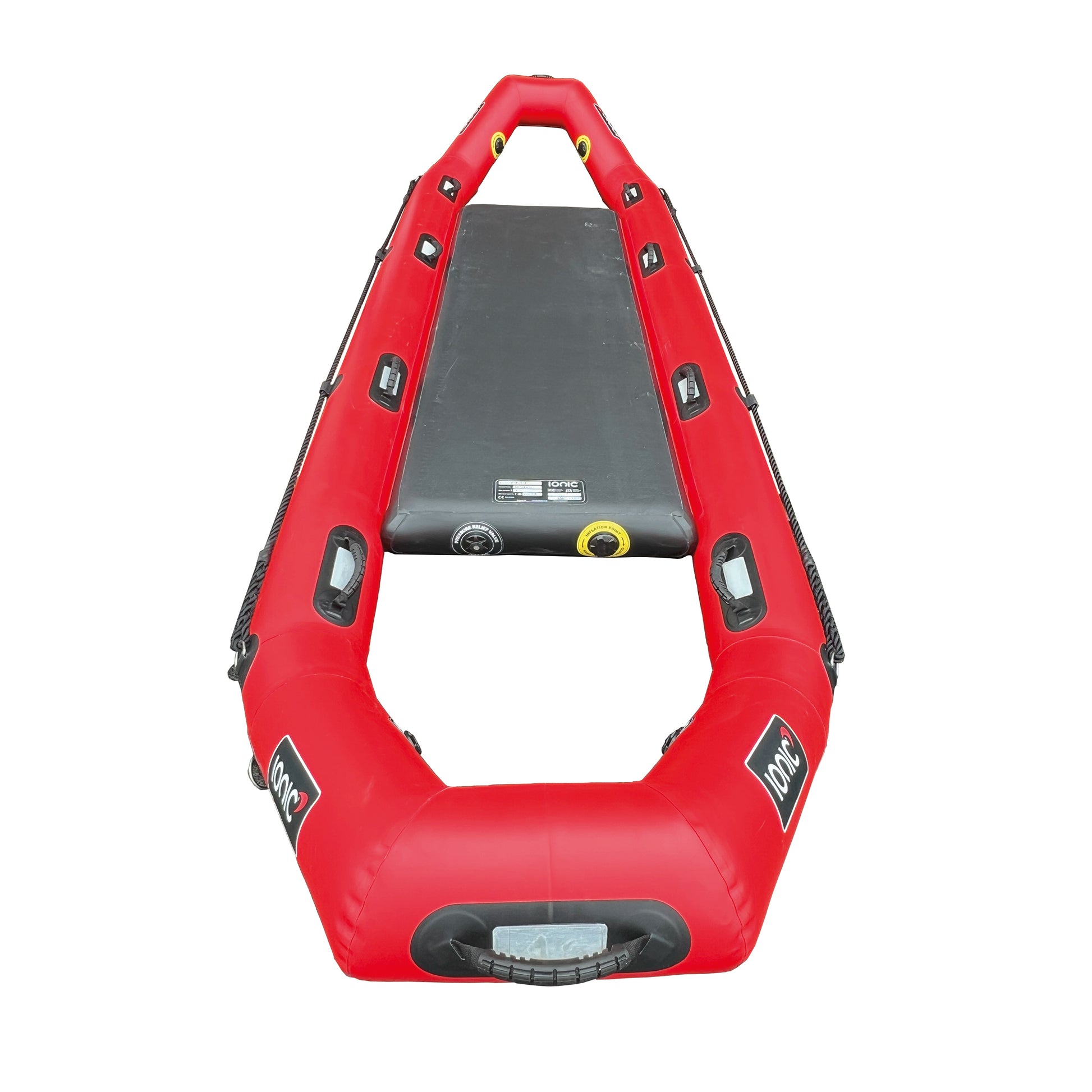

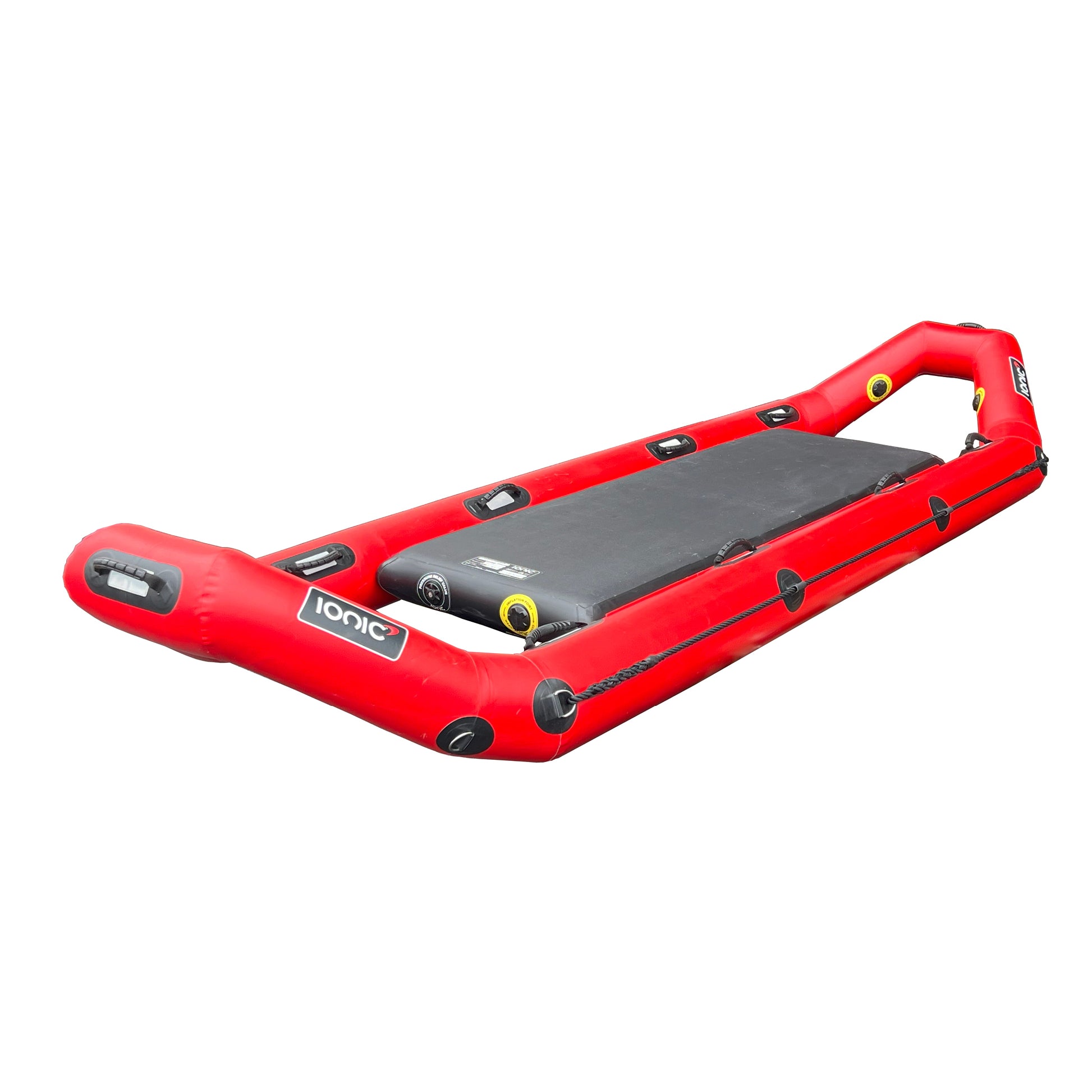

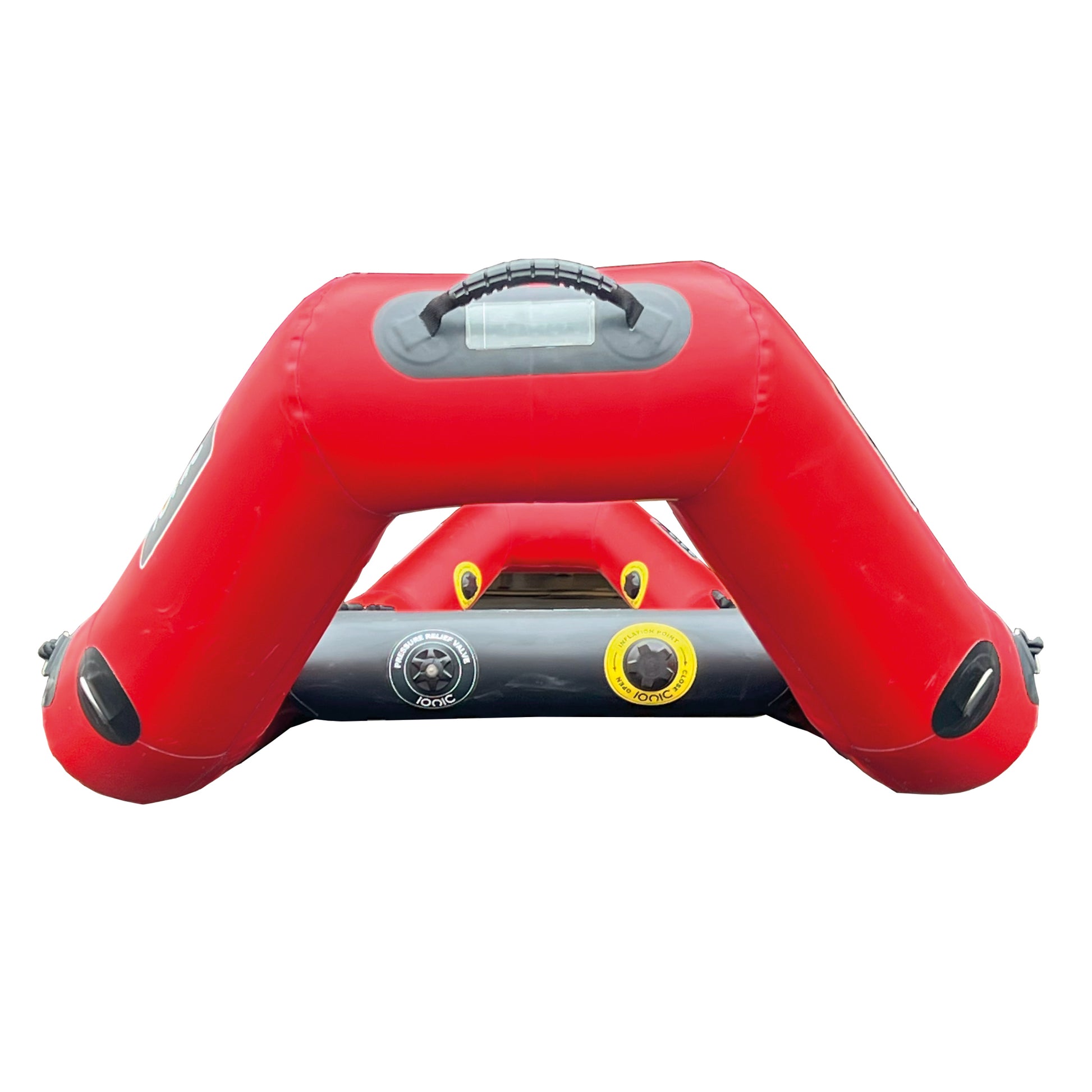

The IONIC Titan XL Sled is a high-capacity evolution of our renowned Titan Sled, trusted by rescue organisations worldwide. Engineered for demanding rescue operations, it is built from premium Orca® Hypalon, ensuring exceptional durability, performance, and reliability, all backed by a 5-year warranty covering both materials and construction.

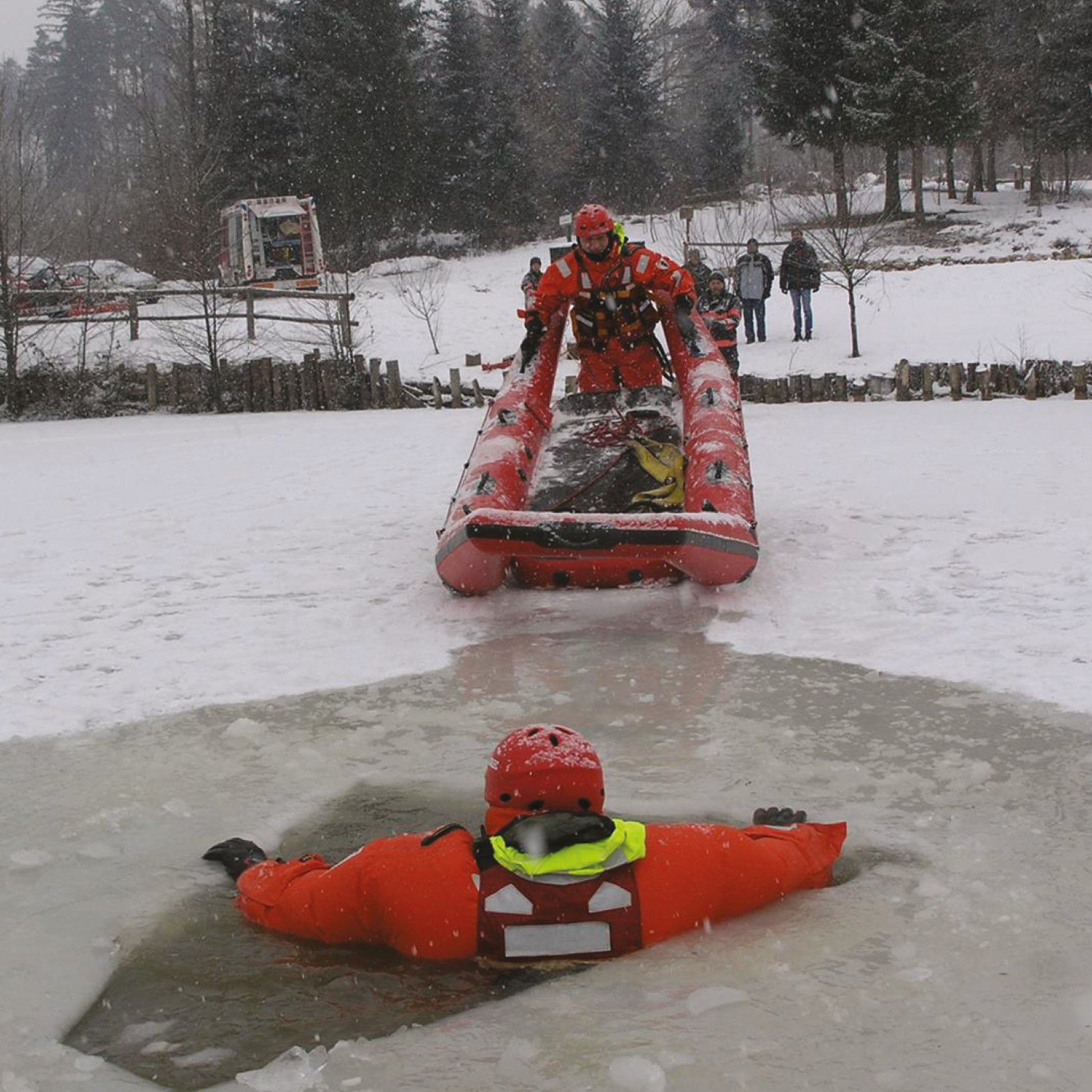

Designed to excel in water, mud, and ice rescues, the Titan XL features oversized, high-volume sponsons that deliver superior buoyancy and stability. Its raised bow improves performance in swift-water conditions, helping rescuers operate safely by minimising the risk of water swamping.
Spacious and versatile, the Titan XL is designed to carry two rescuers and one casualty, yet its robust construction can safely accommodate up to eight people when required.
For safety and reliability, the sled is built with three independent air chambers for the sponsons and one for the deck, with interconnecting valves and individual inflation/deflation points. Deployment is fast and flexible and the sled can be inflated using compressed air cylinders via our dedicated Compact Inflation Kit (SAF38038) or with a conventional hand or foot pump capable of reaching operational pressure.
With its larger capacity, rugged construction, and rescue-focused design, the IONIC Titan XL Sled is the ultimate solution for teams working in the world’s toughest environments.

Load Capacity
• Maximum number of persons 4
• Maximum payload 400kg

Dimensions / Weight
• Overall Length 4.4m
• Overall Width 1.2m
• Deck Length 2.3m
• Internal Deck Width 0.7m

Inflation
• Number of chambers in Sponsons 2
• Inflatable high pressure Deck 1
• Total Airtight chambers 3
• Sponson working pressure 3 psi
• Deck working pressure 9 psi

Towing / Tethering Points
• Bow D-Ring Patches 2
• Stern D-Ring Patches 2

Sponsons & Deck
• 150mm (6”) High pressure Deck
• 250mm (15”) diameter Hypalon Sponsons
• Sponsons consist of 3 air tight chambers

Valves
• Rapid inflation points on Sponsons & Deck
• PRV’s fitted to Sponsons & Deck

Fabric
• Sponsons - ORCA Hypalon
• Deck - ORCA Hypalon double skin drop thread

Packed Dimensions / Weight
• 80(l) x 70(w) x 40(h) cms
• Packed Weight 25kg
